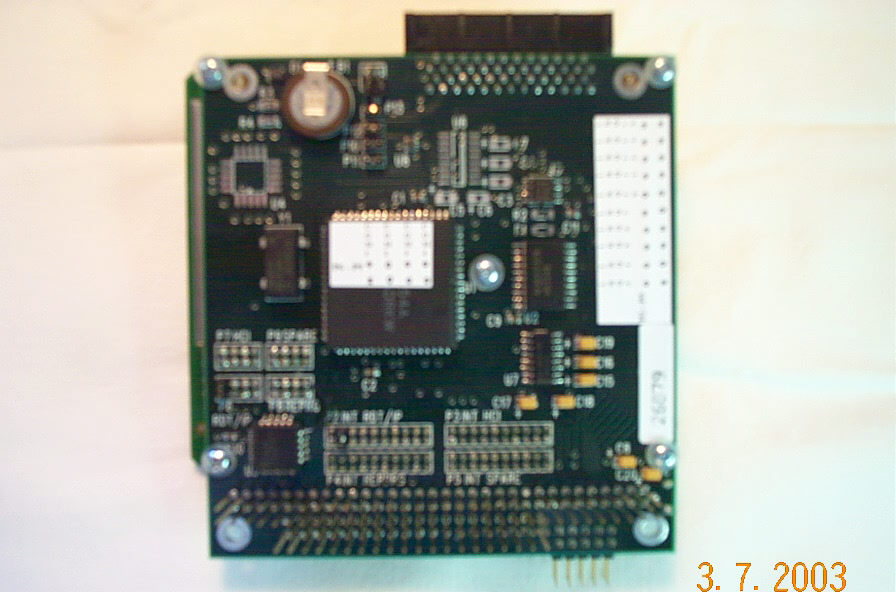

  The SATPAK-104PLUS-FORCE22 is an advanced version of the popular SATPAK-104PLUS that is specifically tailored to accommodate the Trimble FORCE22 GPS receiver module. The FORCE22 is a military Precise Position Service (PPS) GPS receiver that provides 12-channel tracking, L1/L2, DS-102/DS-101 key loading, SAASM, 1PPS/10PPS/UTC/Time Mark, Have Quick interface, optional SINCGARS interface, PVT output, navigation capability, ICD-GPS-153 interface, Differential GPS interface, NMEA interface, Trimble Diagnostic interface, and 3 serial communication channels. The FORCE22 utilizes three (3) independent serial interfaces. The RS-232 and RS-422 signal levels for the three serial interfaces are converted to TTL and then transmitted and received over the PC/104 bus using an industry standard PC16554 quad universal asynchronous receiver transmitter (QUART). The fourth unused port of the QUART can be dedicated to any user-defined function. Each of the serial interfaces appears as a simple COM port and can be selected for COM1, COM2, COM3, or COM4 base addresses using simple push-on jumpers. The associated PC/104 bus interrupt for each COM port can be selected from IRQ3-IRQ7, IRQ10-IRQ12, IRQ14, or IRQ15. A single 50-pin right-angle male header is provided for DS-102/DS-101 key loading, SA-AS loading, Have Quick interface, Optional SINCGARS interface, Differential GPS interface, 1PPS/10PPS outputs and time maintenance power. An additional 10-pin right-angle header is provided for the RS-232 user defined COM port I/O.
