SATPAK-CPCI-MGUE-FORCE5M




Product Specification Sheet (In pdf Format)

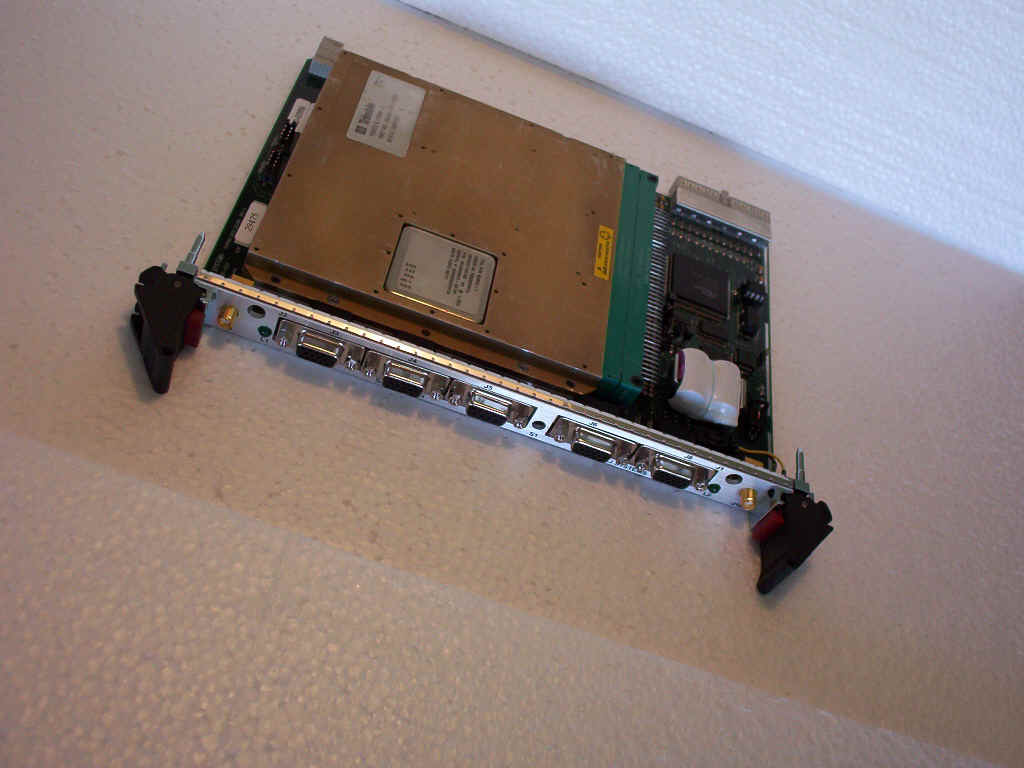

The SATPAK-CPCI-MGUE-FORCE5M is a 6U form factor carrier board that provides a Compact-PCI interface for the Trimble M-Code capable FORCE5M.    Parallel communication with the FORCE5M is accomplished through the 32-bit CompactPCI Bus and the FORCE5M Bi-Directional Data Port (BDDP).  RS-232 and RS-422 serial communication channels of the FORCE5M are accessed at front-panel connector J3.  The BDDP serial channel may be accessed via J3 as selected by the FORCE5M ICD1 discrete input.
